通过旋转NumPy的索引来生成旋转后的图像，这个方法只在四个区域中的两个区域起作用

编程语言 2026-07-10

我正在编写一个Python程序，逐帧用某个函数计算图像，以生成视频。

有时需要对图像进行旋转（不裁剪边缘）。起初，我按照在 OpenCV Python: Rotate image without cropping sides 中所述的方法对图像进行旋转，但在旋转之前显著增大了图像区域。

现在我在努力让程序更快，并尝试仅对索引进行旋转，并尽量把尺寸缩小到最小必要的程度。

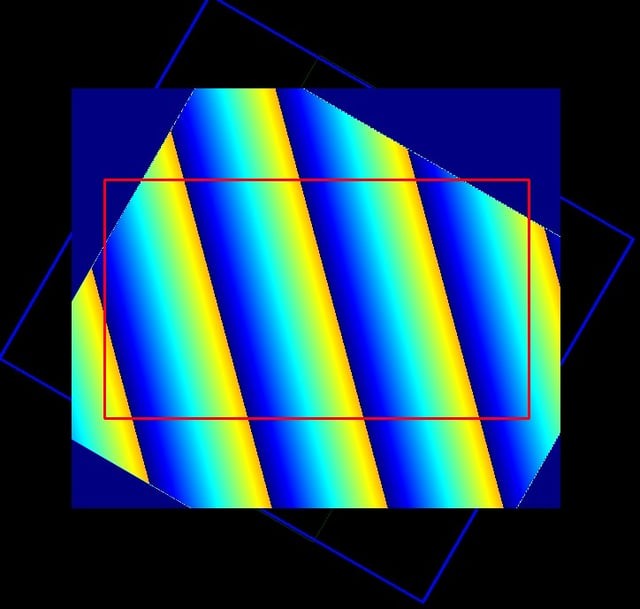

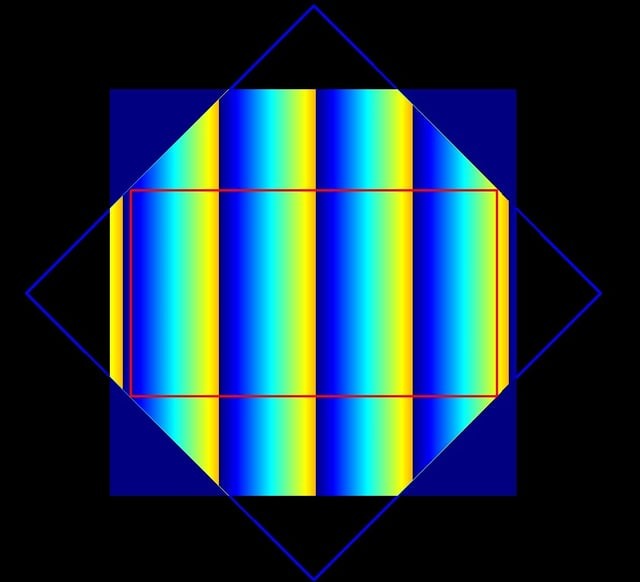

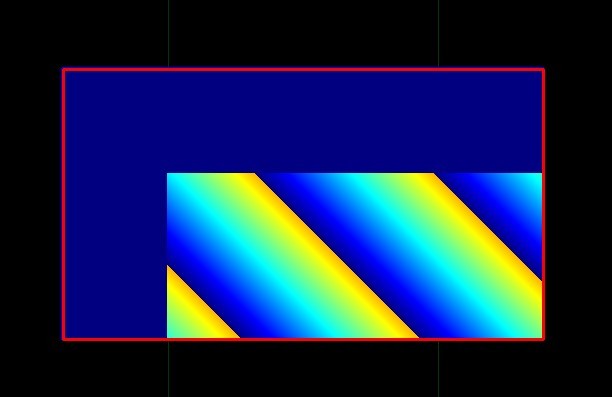

不过，a/m方案只能得到近似结果（图像会略微裁切），因此我改为使用 cv2.boundingRectangle 来计算索引的大小。对于在 -45 < angle < 45 到 135 <= angle < 225 之间的角度，这种方法工作得很完美。然而，在其余扇区，旋转后的图像再也无法与（蓝色的）边界框对齐，且不能完全覆盖整个画面。

这是我简化后的代码。我还引入了canvas，用来显示帧外发生的情况（红色矩形）。只有红框内的数据会被使用。它应该被旋转并放大后的图像完全覆盖：

import numpy as np
import cv2

def diag_bw(x, y):
    '''simple img-generation'''
    return (x + y)%179

def add_cnt(img, cnt, clr, thick):
    '''display a contour cnt line by line'''
    rcoos = [x[::-1] for x in cnt.points().astype(int)]
    for i in range(4):
        cv2.line(img, rcoos[i], rcoos[(i+1)%4], clr, thick)

def slice_frame(oshape, ishape): # (shape of outer-, -inner frame)
    '''y-, x-slices of ishape in oshape'''
    y0 = (oshape[0]-ishape[0])//2
    x0 = (oshape[1]-ishape[1])//2
    sy = slice(y0, y0 + ishape[0])
    sx = slice(x0, x0 + ishape[1])
    return sy, sx

def bbox_meth1(wica, hica, wifr, hifr, angle):    # Dimensions of canvas, of frame, angle
    '''rotate i, j using cv2's .boundingRect()'''
    canvas = np.zeros((hica, wica, 3), np.uint8)  # To display contours outside frame
    rotim = cv2.RotatedRect((hica//2, wica//2), (hifr, wifr), angle) # Rotate frame
    add_cnt(canvas, rotim, (0, 55, 0), 1)
    # Dimension of enclosing rectangle (at angle) for rotated frame
    x, y, w, h = rotim.boundingRect()
    # Rotate + add enclosing rectangle (borec) covering complete fixed frame
    borec = cv2.RotatedRect((wica//2, hica//2), (w, h), angle)
    add_cnt(canvas, borec, (255, 0, 0), 2)

    if (angle <= 45) or (135 <= angle < 225) or (angle > 315):
        # Center of rotation for RotationMatrix
        mx, my = h//2, w//2
        M = cv2.getRotationMatrix2D((mx, my), angle, 1.)
        print(F" {M[0, 2]:6.1f}  {M[1, 2]:6.1f} ", end='')
        print(F" {w:7} {h:7} {mx:7}  {my:7} ", end='')

        i, j = np.indices(np.array([w, h])).astype(np.float32)
        i = cv2.warpAffine(i, M, (h, w))
        j = cv2.warpAffine(j, M, (h, w))
    else:   # For these angles the rotated image doesn't fully cover frame
        mx, my = w//2, h//2
        M = cv2.getRotationMatrix2D((mx, my), angle, 1.)#1.07#1.1)
        print(F" {M[0, 2]:6.1f}  {M[1, 2]:6.1f} ", end='')
        print(F" {h:7} {w:7} {mx:7}  {my:7} ", end='')

        i, j = np.indices(np.array([w, h])).astype(np.float32)
        i = cv2.warpAffine(i, M, (w, h))
        j = cv2.warpAffine(j, M, (w, h))
    print(F"{i.max():7.2f} {j.max():6.1f} {w:6} {h:6} {x:6} {y:6} ", end='')
    print(F"{borec.points()[1][0]:6.1f}{borec.points()[1][1]:6.1f}", end='')
    return [i, j], canvas

if __name__=='__main__':
    print(F"{'angle':10}{'M0':7}{'M1':7}{'w':8}{'h':11}", end='')
    print(F"{'mx':9}{'my':6}{'imax':7}{'jmax':9}{'w':9}{'h':6}", end='')
    print(F"{'x':6}{'y':7}{'b0':6}{'b1':6}{'ishape1':9}{'ishape0':9}", end='')
    print(F"{'i1':6}{'i0':6}")

    hic, wic = 1000, 1000           # Dimension of canvas
    hi,wi = 270, 480                # Dimension of frame to be displayed

    angle_start, angle_end, angle_delta = 0, 361, 5
    for angle in range(angle_start, angle_end, angle_delta):
        print(F"{angle:4}", end='  ')
        # List of arguments for image creating function, canvas
        arglist, canvas = bbox_meth1(wic, hic, wi, hi, angle)
        img = diag_bw(*arglist[:2])

        print(F"{img.shape[1]:7} {img.shape[0]:7}", end='')
        print(F" {arglist[0].shape[1]:5} {arglist[0].shape[0]:7}")
        # Transform img-slice of canvas to color -image by applying cv2-colormap
        canvas[slice_frame((hic, wic), img.shape)] = cv2.applyColorMap(img.astype(np.uint8), 2)
        # Add red rectangle to canvas to highlight frame
        cv2.rectangle(canvas, ((canvas.shape[1]-wi)//2, (canvas.shape[0]-hi)//2),
        ((canvas.shape[1] + wi)//2, (canvas.shape[0] + hi)//2), (0, 0, 255), 2)
        cv2.imshow('can', canvas)
        cv2.waitKey(100)

下面是一些图片来说明这个问题：

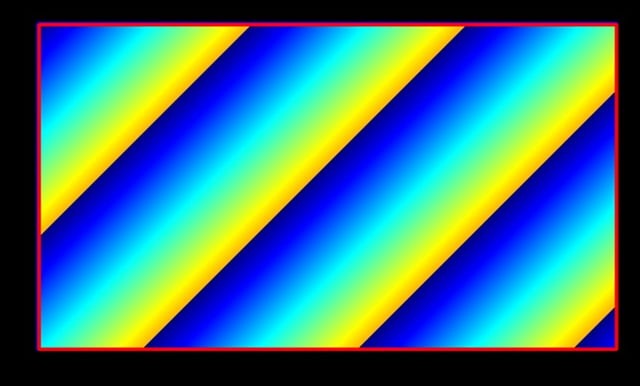

0度，未旋转。计算出的图像完全覆盖了帧。
