如何在Swagger UI(版本10.1.7)中配置,使其通过Authorization头发送Bearer令牌?

前端开发 2026-07-10

我们最近将.NET项目迁移到 Swashbuckle.AspNetCore 10.1.7,版本来自6.6.2,作为一次更大范围的.NET 8到 .NET 10迁移的一部分。不过,我在新版本的Swagger UI上遇到了严重的认证/授权问题。

在迁移之前,我们的认证/授权设置如下:

  1. OAuth2隐式授权方案

我们使用隐式流来登录并获取访问令牌。

Authority/Identity Provider Configuration:

```cs public static AuthenticationBuilder AddAuthenticationForClientPortalApi( this IServiceCollection services, AuthorityConfig authorityConfig, Action configureOptions = null) { if (services == null) throw new ArgumentNullException(nameof(services));

   return services.AddAuthentication(IdentityServerAuthenticationDefaults.AuthenticationScheme)
       .AddIdentityServerAuthentication(options =>
       {
           options.Authority = authorityConfig.BaseUrl;
           options.ApiName = authorityConfig.ApiName;
           configureOptions?.Invoke(options);
       });

} ```

我们添加了 oauth2 安全定义,通过在身份提供者的登录页提交凭据来获取访问令牌。

```cs return services.AddTransient, TSwaggerConfig>() .AddSwaggerGen(options => { options.DescribeAllParametersInCamelCase(); options.OperationFilter();

       options.AddSecurityDefinition("oauth2", new OpenApiSecurityScheme
       {
           Type = SecuritySchemeType.OAuth2,
           Flows = authFlow == AuthFlowType.Implicit ?
               new OpenApiOAuthFlows()
               {
                   Implicit = new OpenApiOAuthFlow()
                   {
                       AuthorizationUrl = new Uri(authorityConfig?.AuthorizationUrl),
                       Scopes = scopes
                   }
               } :
               new OpenApiOAuthFlows()
               {
                   ClientCredentials = new OpenApiOAuthFlow()
                   {
                       TokenUrl = new Uri(authorityConfig?.AuthorizationUrl),
                       Scopes = scopes
                   }
               }
       });

       options.OperationFilter<TAuthFilter>();
       options.EnableAnnotations();

       if (maskSchemas)
       {
           options.CustomSchemaIds(type =>
               Convert.ToBase64String(Encoding.UTF8.GetBytes(type?.FullName.ToSha256() ?? ""))
               .Trim('='));
       }
   });

``` 2. Swagger UI登录流程

该配置允许通过Swagger UI的 Authorize按钮进行登录,并隐式重定向到身份提供者的登录页。 3. 请求执行

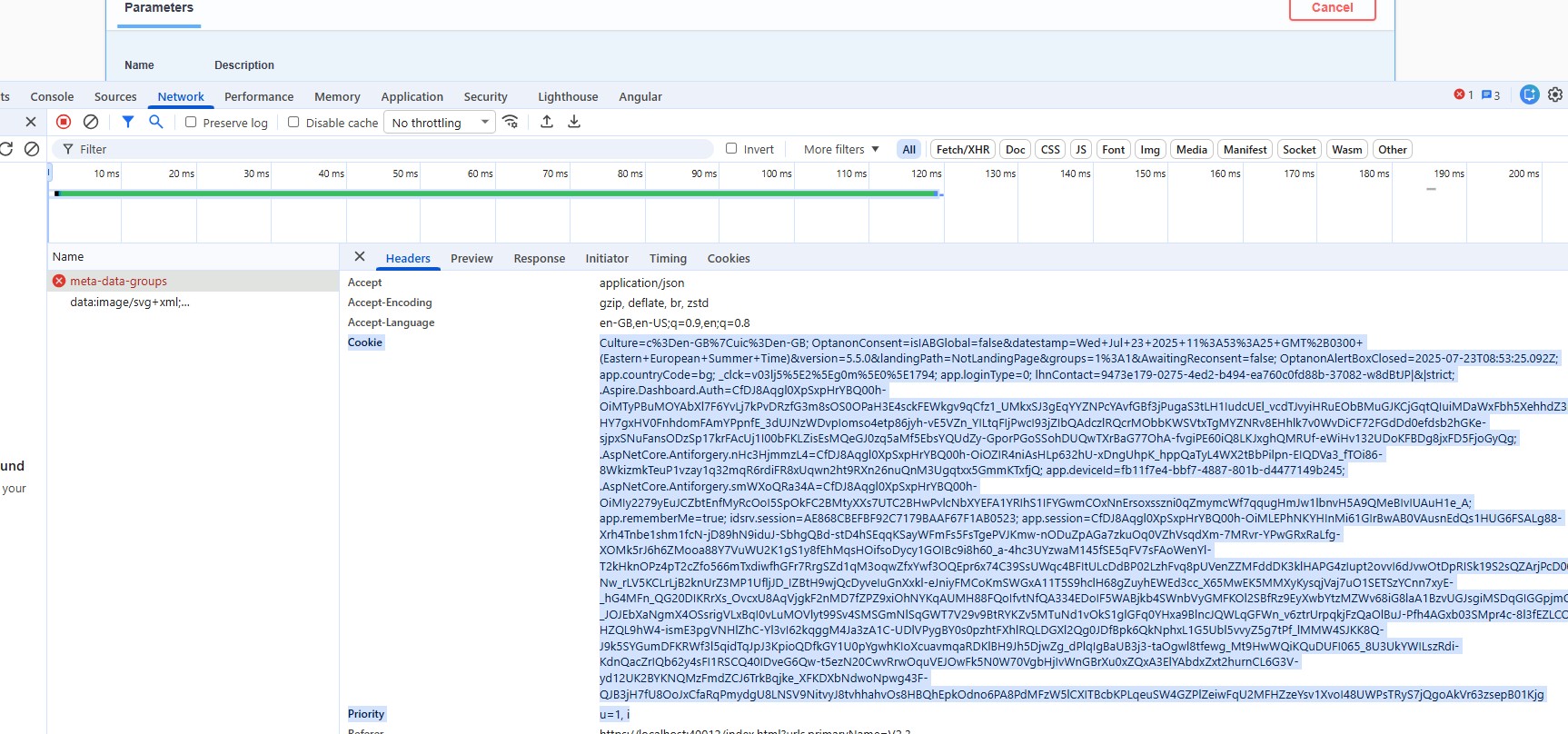

执行已授权的端点请求时,自动在请求头中插入 Authorization 头部及 Bearer 的访问令牌。如下所示:

enter image description here

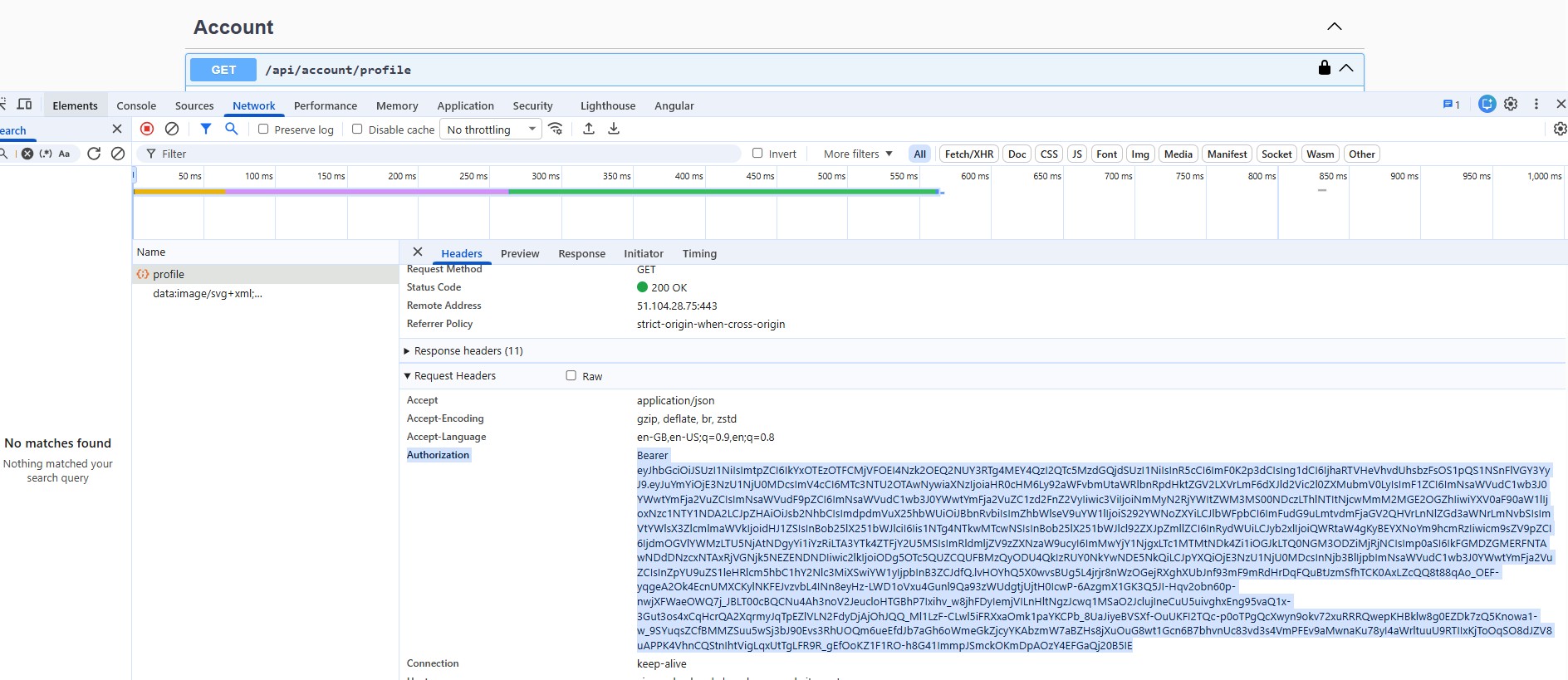

在迁移到最新的 Swashbuckle.AspNetCore 包(仅命名空间调整)。后,步骤3 的行为发生了变化;当我使用Swagger UI执行任意API请求时,发送到API的只有一个cookie,缺少带有 Bearer 令牌的 Authorization 头部。如下所示:

enter image description here

如何在版本10.x.x中配置Swagger UI,使其在携带cookie的同时,将接收到的Bearer令牌放入一个 Authorization 头部发送,并保持初始的OAuth2隐式流登录?此外,在版本10.x.x中,Swagger UI在首次登录/解锁API页面后,会将授权数据存储在哪里?

以下是我当前在项目中引用的包

 <PackageReference Include="Microsoft.OpenApi" Version="2.4.1" />
 <PackageReference Include="Swashbuckle.AspNetCore" Version="10.1.7" />

我已经搜索了类似的问题,但没有找到针对.NET 10和 Swashbuckle.AspNetCore 10.1.7的解答。早期版本的变通方法似乎并不适用。

解决方案

在花了一定时间研究Swashbuckle.AspNetCore 10.1.7的源码后,我想到的变通办法是注册一个JavaScript拦截器函数。希望对某些人有帮助

app.UseSwaggerUI(options =>
{
    // Configuration code above
    options.UseRequestInterceptor(
        "(req) => {" +
        "const token = window.ui.authSelectors.authorized().getIn(['oauth2', 'token', 'access_token']);" +
        "if (token) req.headers['Authorization'] = 'Bearer ' + token;" +
        "return req;" +
        "}");

    configureOptions?.Invoke(options);

这个拦截器将把Bearer令牌添加到通过Swagger UI提交的每一个HTTP请求中。
