我想让文本框在屏幕底部的大部分区域内占据空间，滚动条只在最右边的一侧呈现。但当前我的代码让文本框和滚动条在窗口中部各占一半。这是为什么？我该如何修复？

#in windowstart
import tkinter as tk
from tkinter import ttk,font
def create_root():
    root = tk.Tk()
    root.title("Aghast")
    root.geometry("1400x800")
    root.configure(background="dark grey")
    root.rowconfigure(0,weight=1)
    root.rowconfigure(1,weight=1)
    root.columnconfigure(0,weight=1)
    return root

#in another file

root = create_root()
main_container = tk.Frame(root,height=800,width=1400)
main_container.grid(row=0,column=0,sticky="nsew")

root.grid_rowconfigure(0, weight=1)
root.grid_columnconfigure(0, weight=1)

main_container.rowconfigure(0, weight=3)
main_container.rowconfigure(1,weight=1)
main_container.rowconfigure(2,weight=1)
main_container.columnconfigure(0, weight=1)

logbox_frame = tk.Frame(root)
logbox_frame.grid(row=1,column=0,sticky=tk.EW)

room_container = tk.Frame(main_container)
room_container.grid(row=0, column=0, sticky="nsew")
room_container.configure(background="dark gray")

class logbox(tk.Frame):
    def __init__(self,parent):
        super().__init__(parent)
        self.textframe = tk.Frame(self)
        self.textframe.columnconfigure(0,weight=10)
        self.textframe.columnconfigure(1,weight=1)
        for i in range(6):
            self.textframe.rowconfigure(i, weight=1 if i == 5 else 0)
        self.textframe.grid(row=0, column=0, sticky="nsew")

        self.scrollbar = tk.Scrollbar(self.textframe)
        self.scrollbar.grid(row=5,column=1,sticky="e")

        self.textbox = tk.Text(
            self.textframe,
            height=8,
            wrap="word",
            yscrollcommand=self.scrollbar.set,
        )
        self.textbox.grid(row=5,column=0,sticky="nsew")
        self.textbox.config(state="disabled")

        self.scrollbar.config(command=self.textbox.yview)

        self.textbox.tag_config("combat", foreground="red")
        self.textbox.tag_config("treasure", foreground="gold")
        self.textbox.tag_config("lore", foreground="purple")
        self.textbox.tag_config("peaceful", foreground="green")
        self.textbox.tag_config("default", foreground="black")

        self.grid(row=5, column=0,columnspan=2)


logbox_frame.tkraise()
room_container.tkraise()
Logbox = logbox(logbox_frame)
Logbox.tkraise()

root.mainloop()

解决方案

你有这么多嵌套的 Frame，所以很难找出问题所在。

解法需要在三个地方进行修改，才能看到结果。

我尝试了多种组合，结果对我来说是可行的。

logbox_frame.columnconfigure(0, weight=1)  # <--- weight

class logbox(tk.Frame):
    def __init__(self, parent):
        super().__init__(parent)

        self.columnconfigure(0, weight=1)  # <-- weight

        # ... code ...

        self.grid(row=0, column=0, columnspan=2, sticky="news")  # <--- sticky

完整可运行的代码。

我在某些元素中添加了 background=，以便更清楚地看到哪些元素没有使用全宽。你可以把它移除。

它还需要在带有 Scrollbar 的列中使用 weight=0，以实现最小宽度。

顺便说一句：推荐把 UpperCaseNames 用于类名、lower_case_names 用于实例——例如用 class Logbox() 和 logbox = Logbox(..)，代替 class logbox() 和 Logbox = logbox(..)（这与代码中其他控件的命名风格类似）。

（更多：PEP 8 -- Style Guide for Python Code）

import tkinter as tk
from tkinter import ttk, font


def create_root():
    root = tk.Tk()
    root.title("Aghast")
    root.geometry("1400x800")
    root.configure(background="dark grey")
    root.rowconfigure(0, weight=1)
    root.rowconfigure(1, weight=1)
    root.columnconfigure(0, weight=1)
    return root


# in another file

root = create_root()
main_container = tk.Frame(root, height=800, width=1400)
main_container.grid(row=0, column=0, sticky="nsew")

root.grid_rowconfigure(0, weight=1)
root.grid_columnconfigure(0, weight=1)

main_container.rowconfigure(0, weight=3)
main_container.rowconfigure(1, weight=1)
main_container.rowconfigure(2, weight=1)
main_container.columnconfigure(0, weight=1)

logbox_frame = tk.Frame(root, background="red")
logbox_frame.grid(row=1, column=0, sticky=tk.EW)
logbox_frame.columnconfigure(0, weight=1)  # <-- weight

room_container = tk.Frame(main_container)
room_container.grid(row=0, column=0, sticky="nsew")
room_container.configure(background="dark gray")


class Logbox(tk.Frame):
    def __init__(self, parent):
        super().__init__(parent, background="blue")
        self.columnconfigure(0, weight=1)  # <-- weight

        self.textframe = tk.Frame(self, background="green")
        self.textframe.columnconfigure(0, weight=1)  # <-- you can use 1
        self.textframe.columnconfigure(1, weight=0)  # <-- need 0 to get minimal width for Scrollbar

        for i in range(6):
            self.textframe.rowconfigure(i, weight=1 if i == 5 else 0)
        self.textframe.grid(row=0, column=0, sticky="news")

        self.scrollbar = tk.Scrollbar(self.textframe)
        self.scrollbar.grid(row=5, column=1, sticky="e")

        self.textbox = tk.Text(
            self.textframe,
            height=8,
            wrap="word",
            yscrollcommand=self.scrollbar.set,
            background="yellow",
        )

        self.textbox.insert("end", "Hello World!")

        self.textbox.grid(row=5, column=0, sticky="nsew")
        self.textbox.config(state="disabled")

        self.scrollbar.config(command=self.textbox.yview)

        self.textbox.tag_config("combat", foreground="red")
        self.textbox.tag_config("treasure", foreground="gold")
        self.textbox.tag_config("lore", foreground="purple")
        self.textbox.tag_config("peaceful", foreground="green")
        self.textbox.tag_config("default", foreground="black")

        self.grid(row=5, column=0, columnspan=2, sticky="news")  # <-- sitcky


logbox_frame.tkraise()
room_container.tkraise()
logbox = Logbox(logbox_frame)
logbox.tkraise()

root.mainloop()

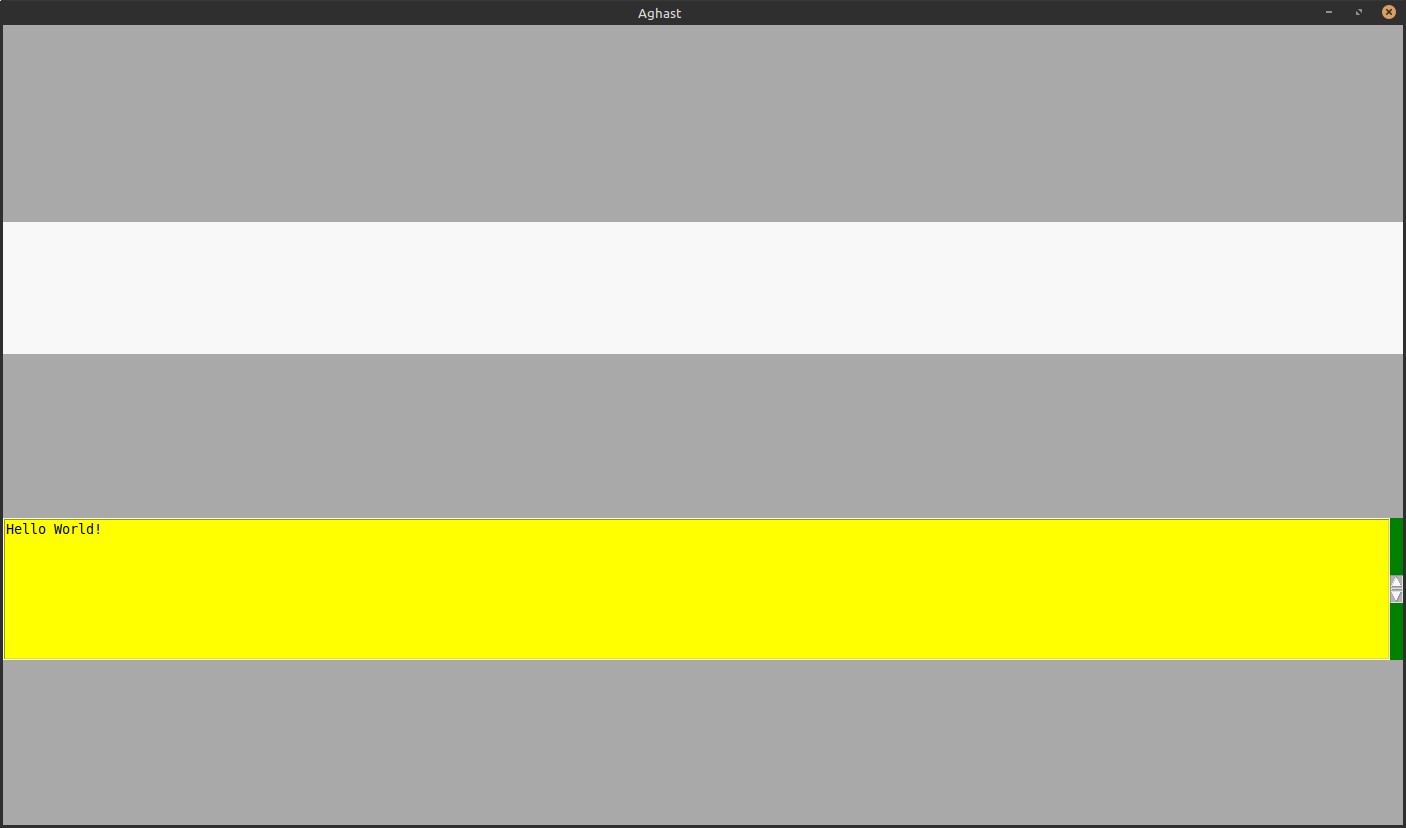

结果：

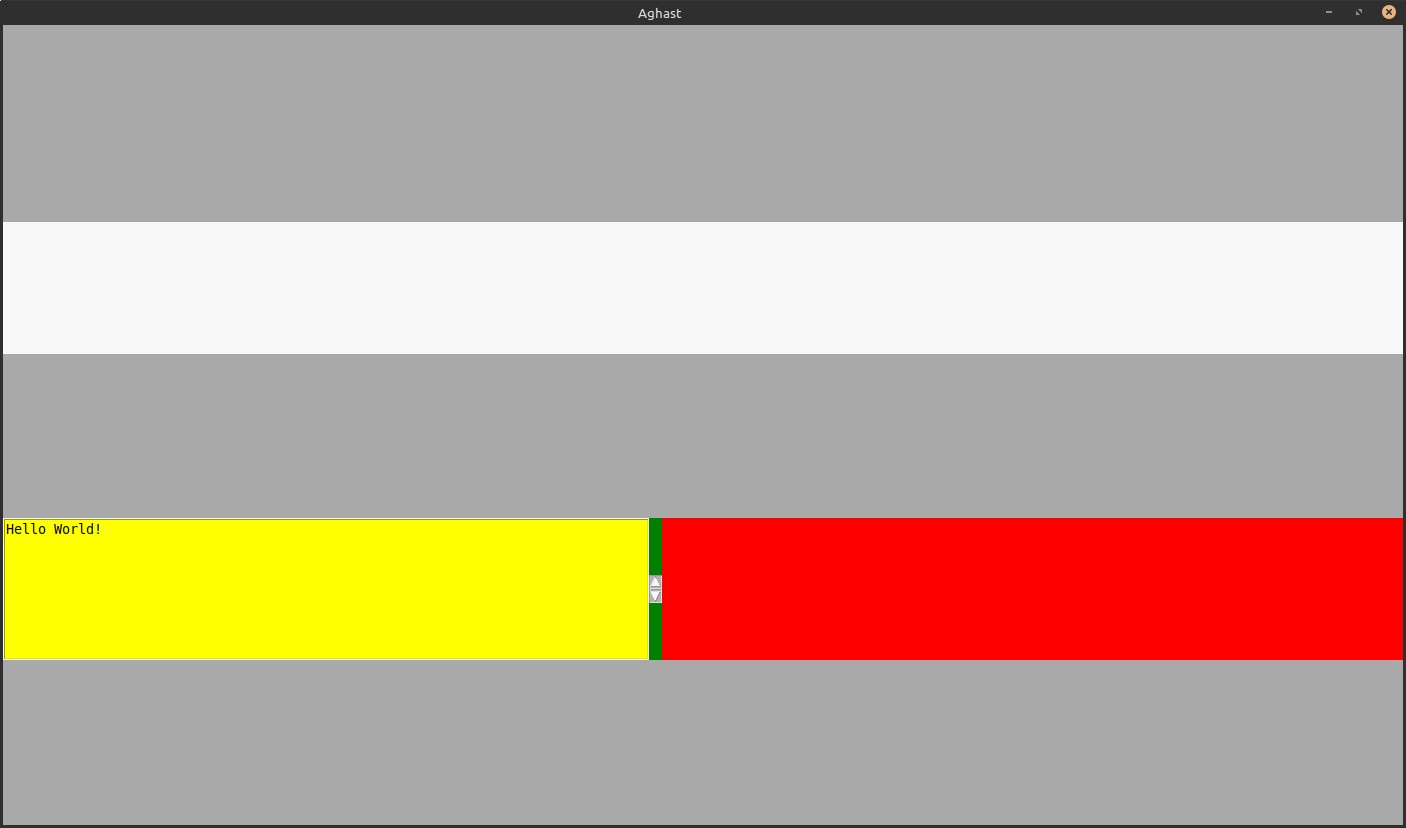

之前：
