为什么pre1这一行会最后才被渲染到末端？拓扑图的顺序完全颠倒了。pre4显示在顶部，pre1显示在底部。

    pre1 -> mat1 -> res1;
    pre2 -> mat2 -> res2;
    pre3 -> mat3 -> res3;
    pre4 -> mat4 -> res4;

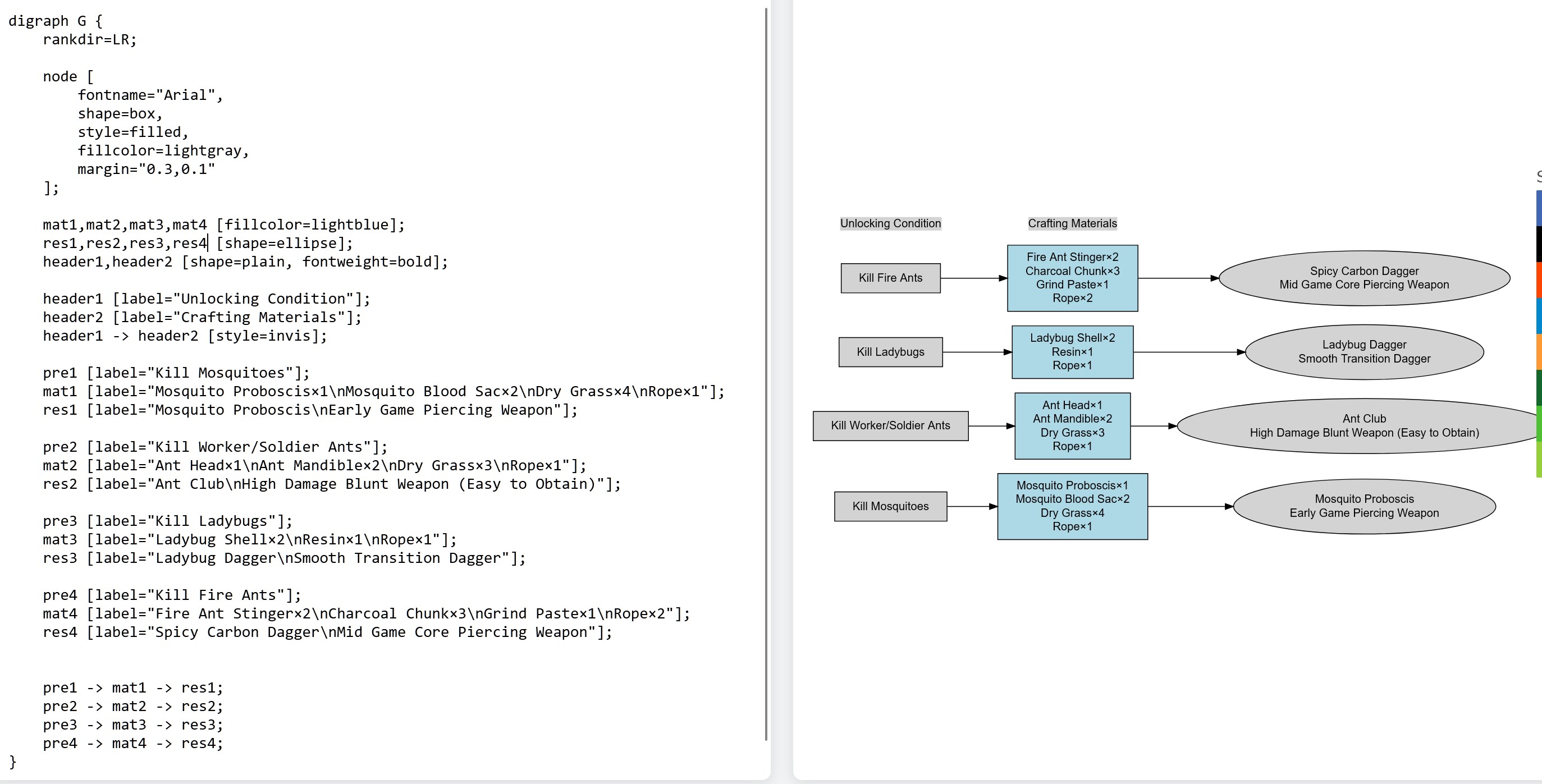

下面是我的dot文件的内容，截图也在这里。

有什么简单的技巧可以修复吗？谢谢。

digraph G {
    rankdir=LR;

    node [
        fontname="Arial",
        shape=box,
        style=filled,
        fillcolor=lightgray,
        margin="0.3,0.1"
    ];

    mat1,mat2,mat3,mat4 [fillcolor=lightblue];
    res1,res2,res3,res4 [shape=ellipse];
    header1,header2 [shape=plain, fontweight=bold];

    header1 [label="Unlocking Condition"];
    header2 [label="Crafting Materials"];
    header1 -> header2 [style=invis];

    pre1 [label="Kill Mosquitoes"];
    mat1 [label="Mosquito Proboscis×1\nMosquito Blood Sac×2\nDry Grass×4\nRope×1"];
    res1 [label="Mosquito Proboscis\nEarly Game Piercing Weapon"];

    pre2 [label="Kill Worker/Soldier Ants"];
    mat2 [label="Ant Head×1\nAnt Mandible×2\nDry Grass×3\nRope×1"];
    res2 [label="Ant Club\nHigh Damage Blunt Weapon (Easy to Obtain)"];

    pre3 [label="Kill Ladybugs"];
    mat3 [label="Ladybug Shell×2\nResin×1\nRope×1"];
    res3 [label="Ladybug Dagger\nSmooth Transition Dagger"];

    pre4 [label="Kill Fire Ants"];
    mat4 [label="Fire Ant Stinger×2\nCharcoal Chunk×3\nGrind Paste×1\nRope×2"];
    res4 [label="Spicy Carbon Dagger\nMid Game Core Piercing Weapon"];


    pre1 -> mat1 -> res1;
    pre2 -> mat2 -> res2;
    pre3 -> mat3 -> res3;
    pre4 -> mat4 -> res4;
}

解决方案

我已经按你说的方式进行了修改，你可能想把箭头的长度调长一些，这样看起来会好一些。

digraph G {
  rankdir=TB;

    node [
        fontname="Arial",
        shape=box,
        style=filled,
        fillcolor=lightgray,
        margin="0.3,0.1"
    ];

    mat1,mat2,mat3,mat4 [fillcolor=lightblue];
    res1,res2,res3,res4 [shape=ellipse];
    header1,header2 [shape=plain, fontweight=bold];

    header1 [label="Unlocking Condition"];
    header2 [label="Crafting Materials"];
    header1 -> header2 [style=invis];

    { rank = same;
        pre1 [label="Kill Mosquitoes"];
        mat1 [label="Mosquito Proboscis×1\nMosquito Blood Sac×2\nDry Grass×4\nRope×1"];
        res1 [label="Mosquito Proboscis\nEarly Game Piercing Weapon"];
        pre1 -> mat1 -> res1;
    }

    { rank = same;
        pre2 [label="Kill Worker/Soldier Ants"];
        mat2 [label="Ant Head×1\nAnt Mandible×2\nDry Grass×3\nRope×1"];
        res2 [label="Ant Club\nHigh Damage Blunt Weapon (Easy to Obtain)"];
        pre2 -> mat2 -> res2;
    }

    { rank = same;
        pre3 [label="Kill Ladybugs"];
        mat3 [label="Ladybug Shell×2\nResin×1\nRope×1"];
        res3 [label="Ladybug Dagger\nSmooth Transition Dagger"];
        pre3 -> mat3 -> res3;
    }

    { rank = same;
        pre4 [label="Kill Fire Ants"];
        mat4 [label="Fire Ant Stinger×2\nCharcoal Chunk×3\nGrind Paste×1\nRope×2"];
        res4 [label="Spicy Carbon Dagger\nMid Game Core Piercing Weapon"];
        pre4 -> mat4 -> res4;
    }


    pre1 -> pre2 -> pre3 -> pre4 [style=invis];
}
